Operating temperature range: -20℃~60℃
Maximum input current: 10 to 16A
Input maximum power: 2.2~3.5KW
Input voltage: single-phase standard voltage 220V 50/60Hz, operating voltage 170-265V
Output Hertz: 15-120Hz
Carrier frequency: 5kHz
PFC value: 0.9-0.99
Communication: RS485 standard, RS232 optional

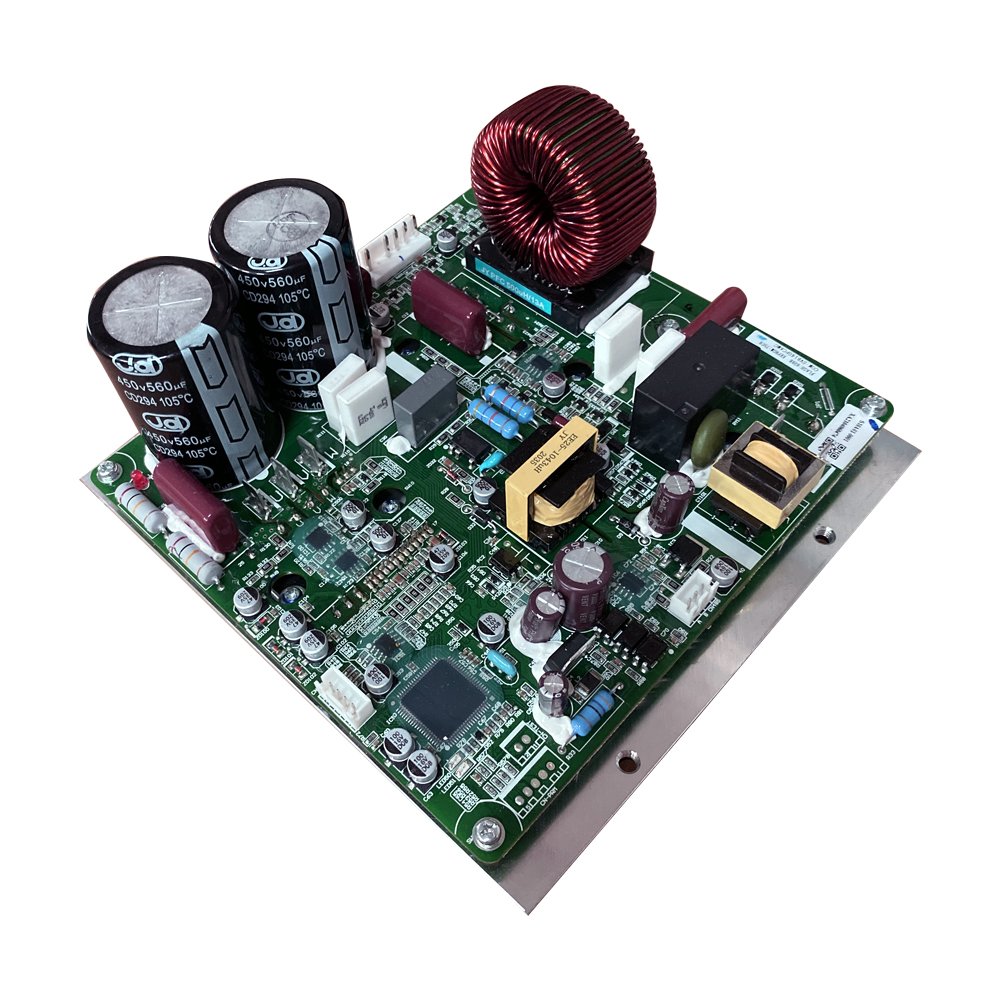

The driver adopts the position sensorless 180 degree sine wave vector control scheme to realize the drive control of BLDC compressor, and has functions such as low or high busbar voltage protection, high temperature protection of IPM module, and compressor overcurrent protection
The driver adopts the position sensorless 180 degree sine wave vector control scheme to realize the drive control of BLDC compressor, and has functions such as low or high busbar voltage protection, high temperature protection of IPM module, and compressor overcurrent protection
Operating temperature range: -20℃~60℃
Maximum input current: 10 to 16A
Input maximum power: 2.2~3.5KW
Input voltage: single-phase standard voltage 220V 50/60Hz, operating voltage 170-265V
Output Hertz: 15-120Hz
Carrier frequency: 5kHz
PFC value: 0.9-0.99
Communication: RS485 standard, RS232 optional
